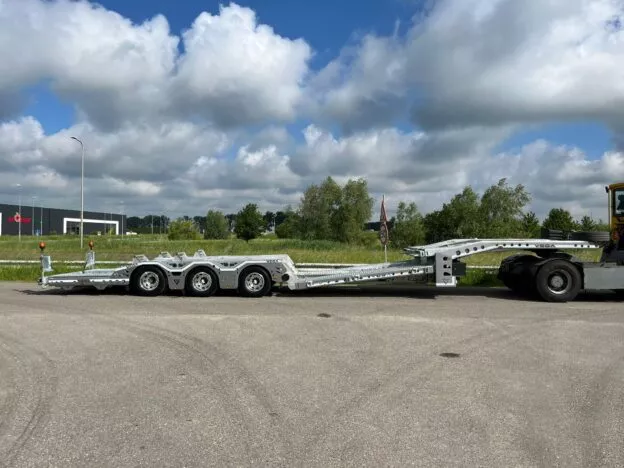

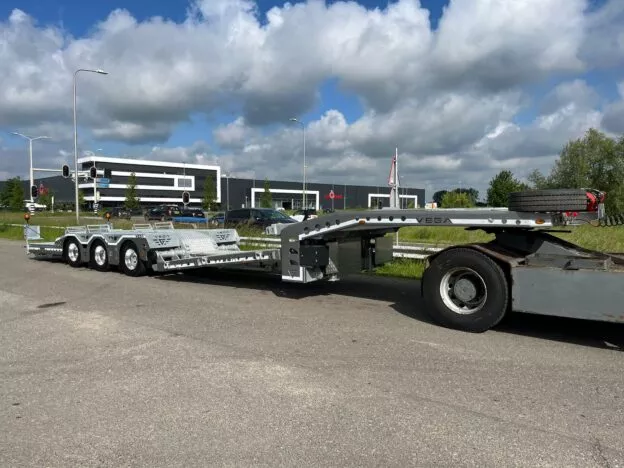

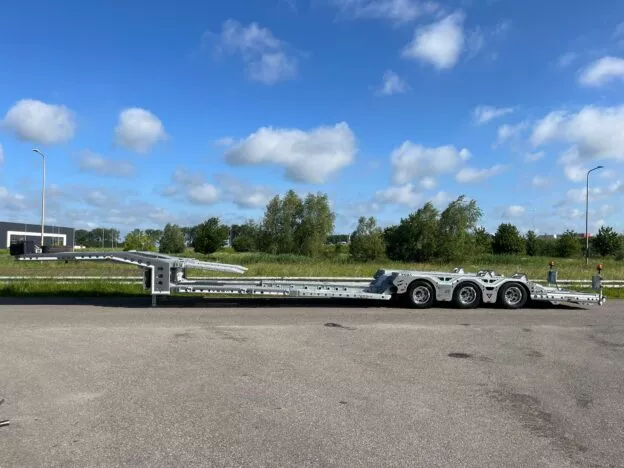

VEGA Trailer PROMAX 3 axle

Auto transporter trailer

Print images

VEGA Trailer PROMAX 3 axle

99.000
Code machine
00032298
Make
VEGA Trailer
Model
PROMAX 3 axle
Serial number
NR9VEGA35AR257148
Unused
Yes
Year
2024
Location
BIG 1 BIG Machinery B.V. (Schiemerik 1)
Weight
Lifting axle
Yes
Axle brand
BPW
COC available
Yes
Spare tyre
Yes
Steering Axle
1
EBS
Yes
Suspension
airsuspension

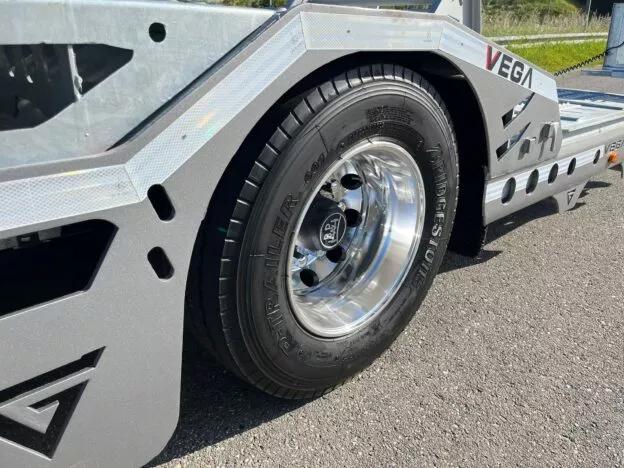

Tyre size axle 1
245 / 70 R 17.5
Tyre size axle 2
245 / 70 R 17.5

Description

DIMENSION INFORMATIONS
-Total length 13.600 mm
-Middle Extension 2.300 mm
-Rear extension 1.300 mm
-Width 2.550 mm
-Fifth Wheel Height 950 – 1050 mm
-Wheelbase 12.000 mm

WEIGHT INFORMATIONS
-Capacity 2- or 3 unit Trucks
-Empty weight 12.500 kg
-In service maximum permissible laden mass 48.000 kg
-Kingpin load 18.000 kg

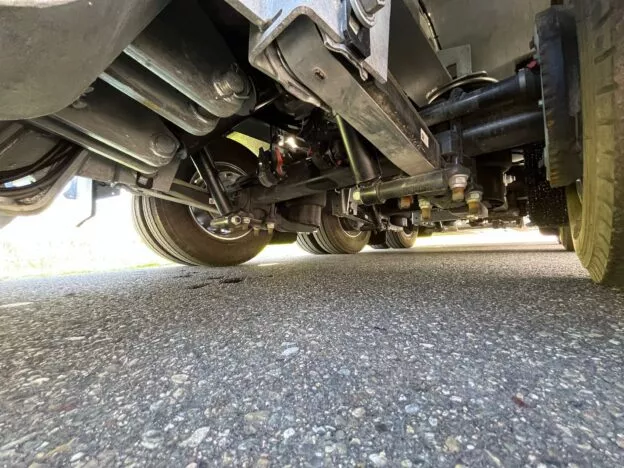

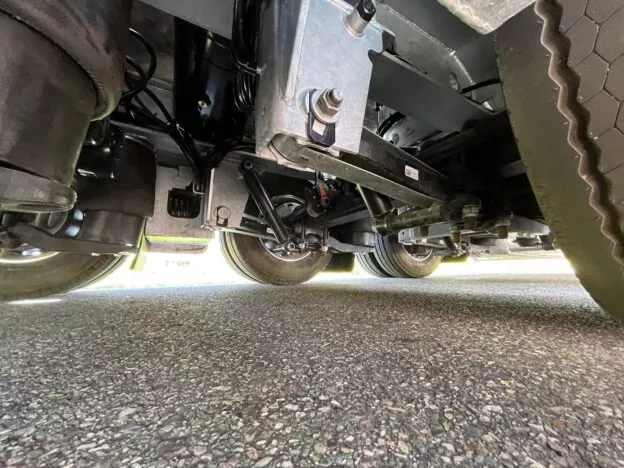

RUNNING GEAR
-1st axle lifting
-3rd axle self-steering
-BPW Brand Axles Drum Brake

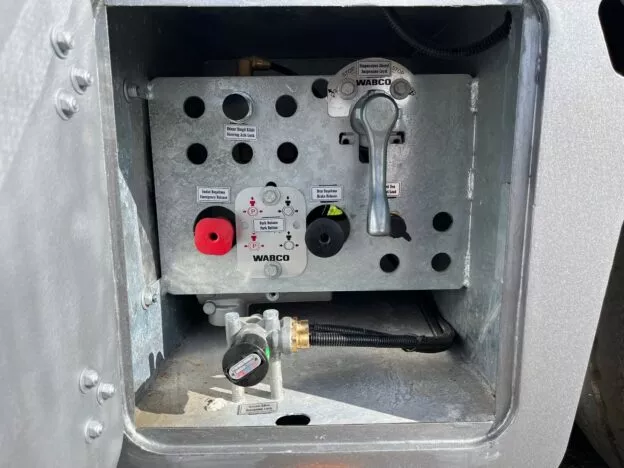

-Wabco Brand EBS brake system

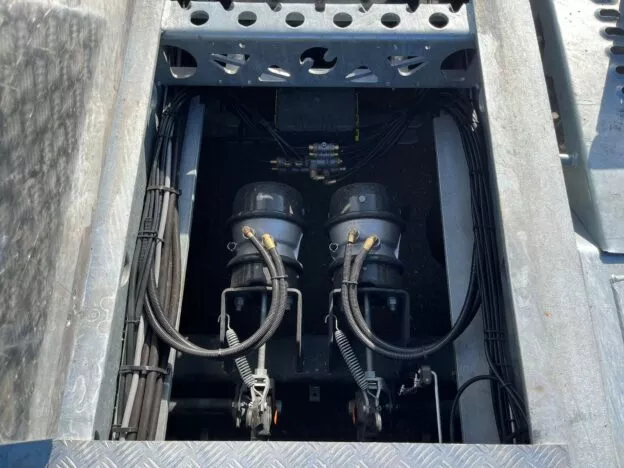

-Automatic slacks, 2 spring brake chambers, and 2 service brake chambers
-RSS that provides a safe driving system against 2S / 2M EBS

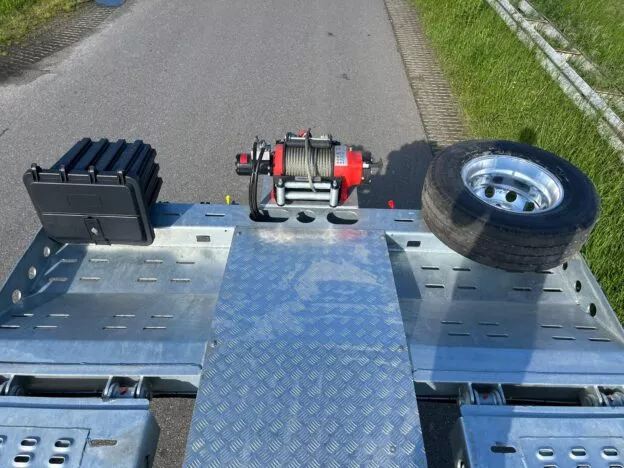

-5 and 8 tons winch with remote
