Ozgul LW4 EU FIX
- Code machine
- 00032308
- Make
- Ozgul
- Model
- LW4 EU FIX
- Unused
- Yes
- Year
- 2024
- Location
- BIG 1 BIG Machinery B.V. (Schiemerik 1)
- Weight
- 13000
- Lifting axle
- Yes
- Loading capacity (T)
- 57
- ABS
- Yes
- Number of axles
- 4
- Platform Dimensions (mm)
- 9000
- COC available
- Yes
- Spare tyre
- Yes
- EBS
- Yes
- Suspension
- airsuspension
- Tyre size axle 1
- 245 / 70 R 17.5
- Tyre size axle 2
- 245 / 70 R 17.5
- Tyre size axle 3
- 245 / 70 R 17.5
- Tyre size axle 4
- 245 / 70 R 17.5
- Weight (Kg)
- 13000
Description
TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting
-Suspension (Type) : Air Suspension
-Steering Axles : –
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed
-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System
-24V, 2×7 + 1×15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. – 4 x Side LED Lights
-2 x White LED Lights – 2 x Front LED Lights
-2 x Registration Plate Lights – 2 x rotating Lights

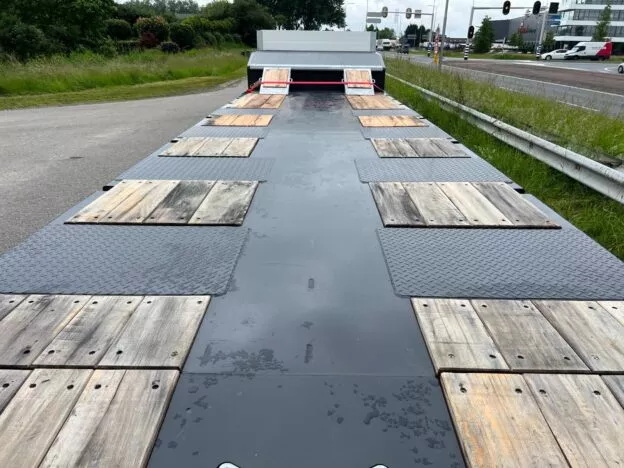

Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel
Rear Loading Ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium

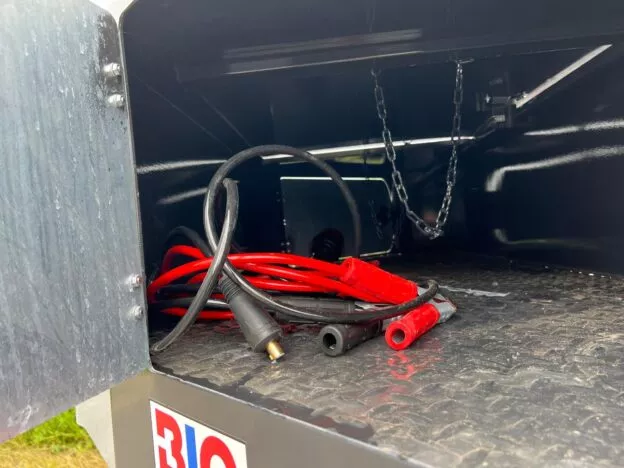

-1 x Tool box.
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper
