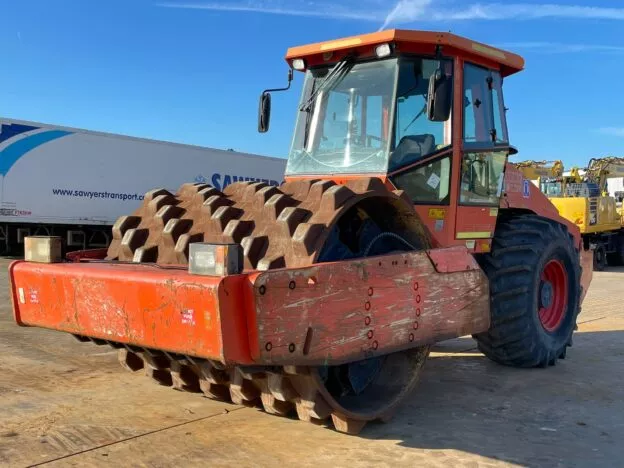

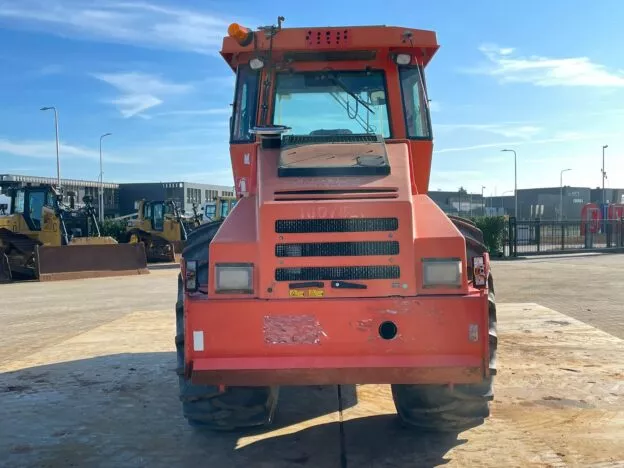

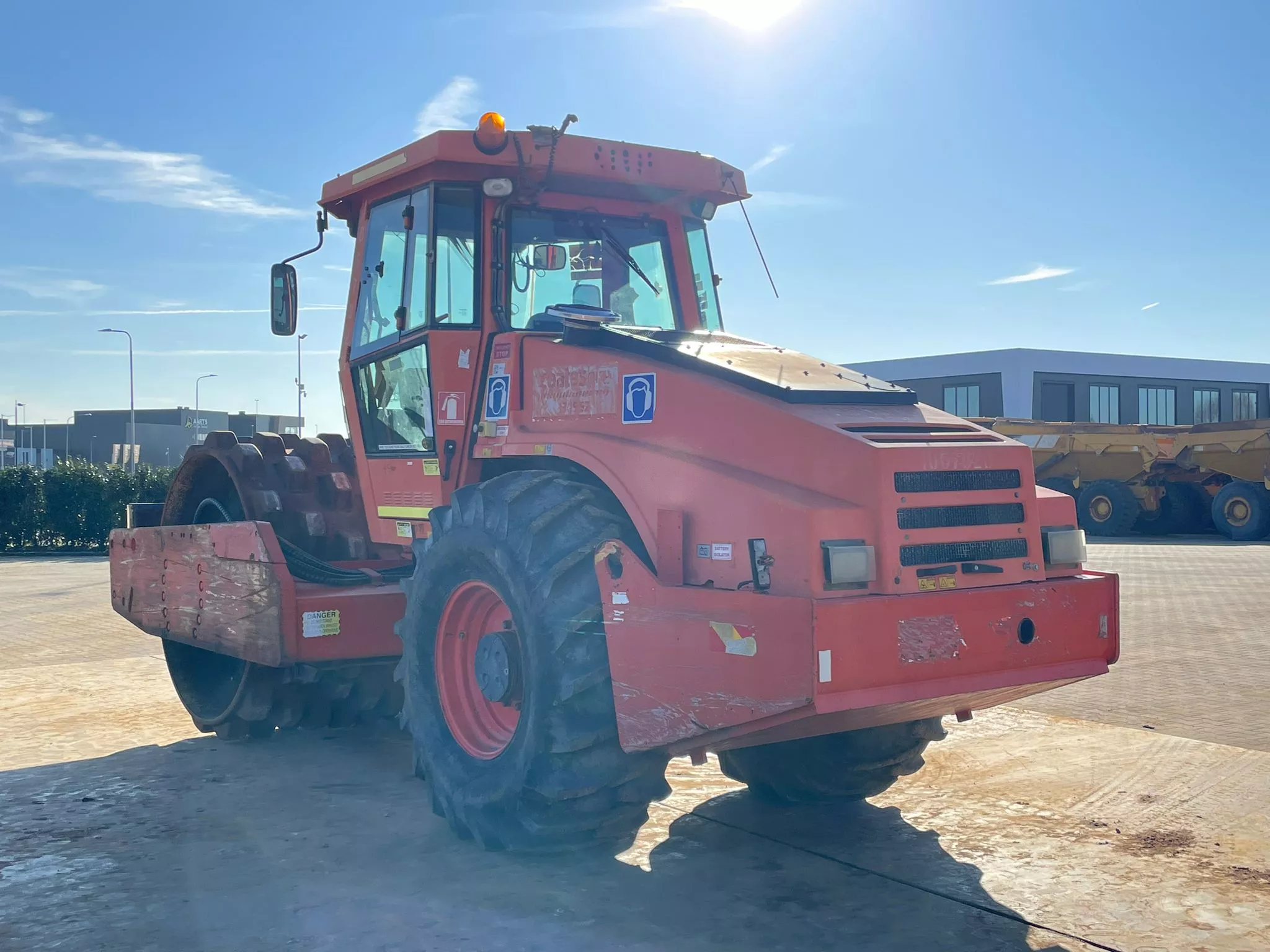

Used Dynapac CA612PD Pneumatic Roller – 2011 – For Sale at BIG Machinery

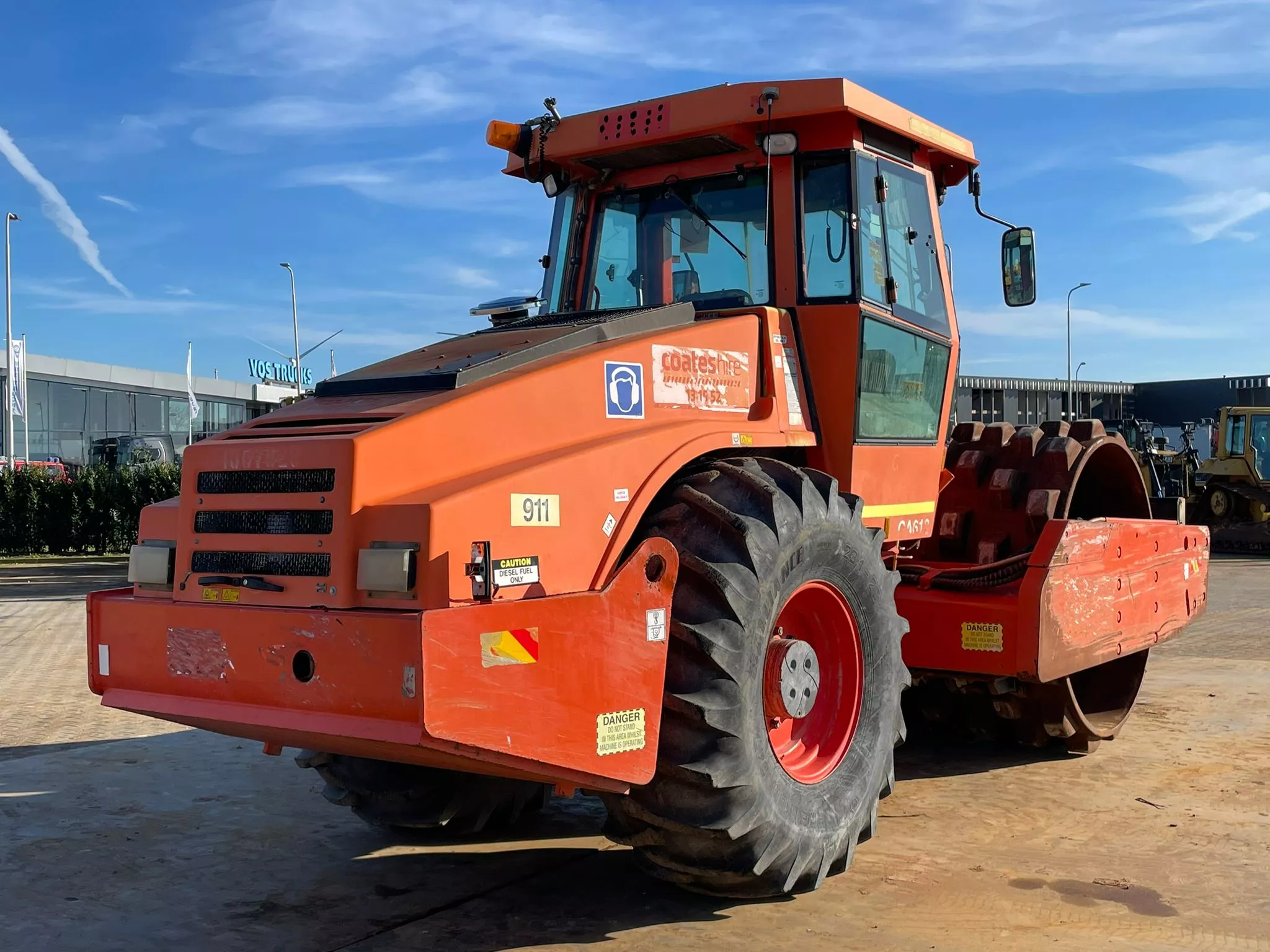

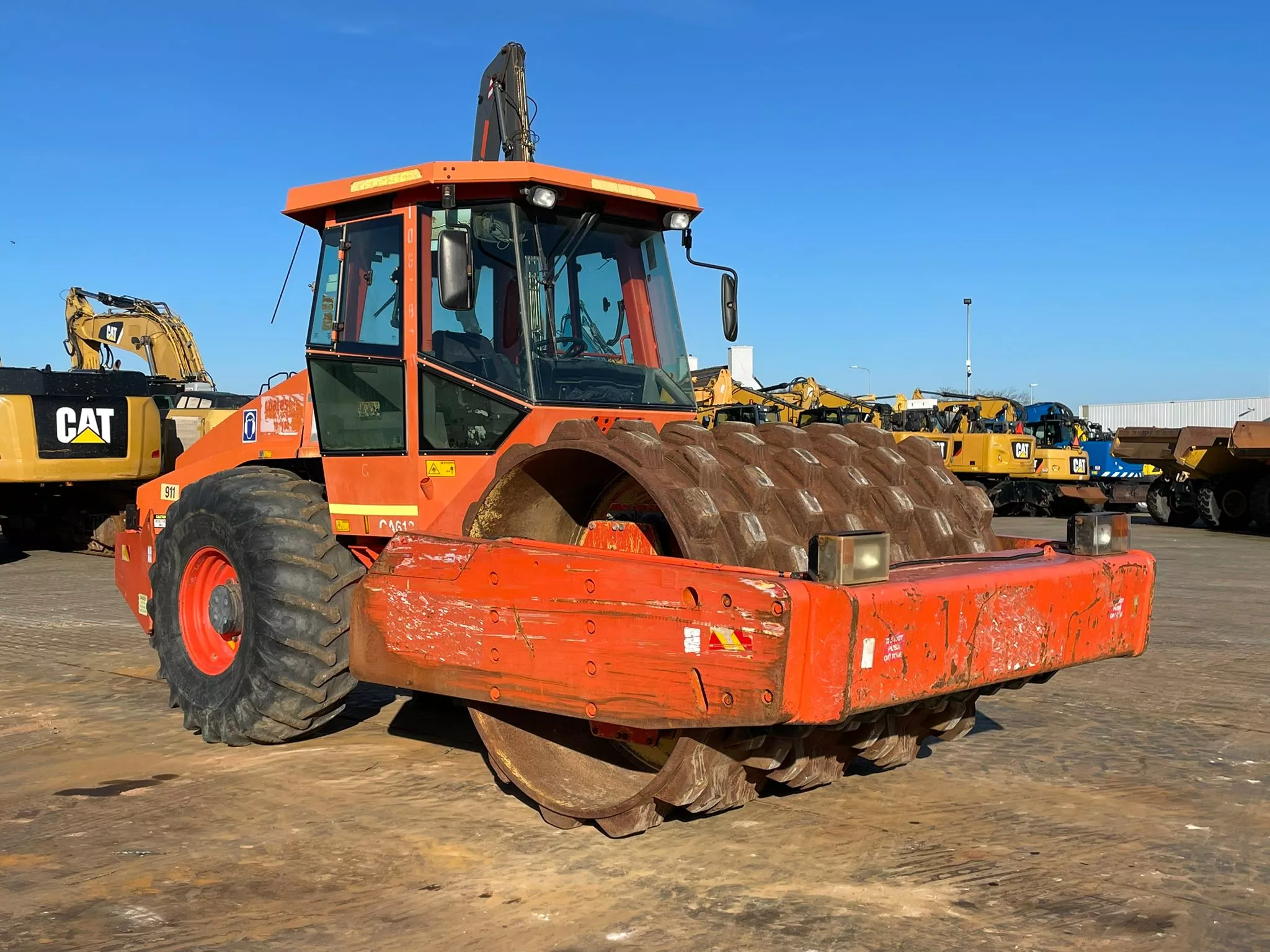

This Dynapac CA612PD pneumatic roller is available for sale at BIG Machinery in the Netherlands. Manufactured in Sweden in 2011, this machine is CE certified and in good working condition. It is suitable for road construction, asphalt compaction, and large-scale paving projects.

The machine has an operating mass of 20,700–21,000 kg (including ROPS), with a front module of 14,050 kg and rear module of 6,650 kg. It is equipped with 130 rubber pads, pad area 146 cm², and a speed range of 0–11 km/h. The roller achieves a theoretical gradeability of 43% and features vertical oscillation of ±9°.

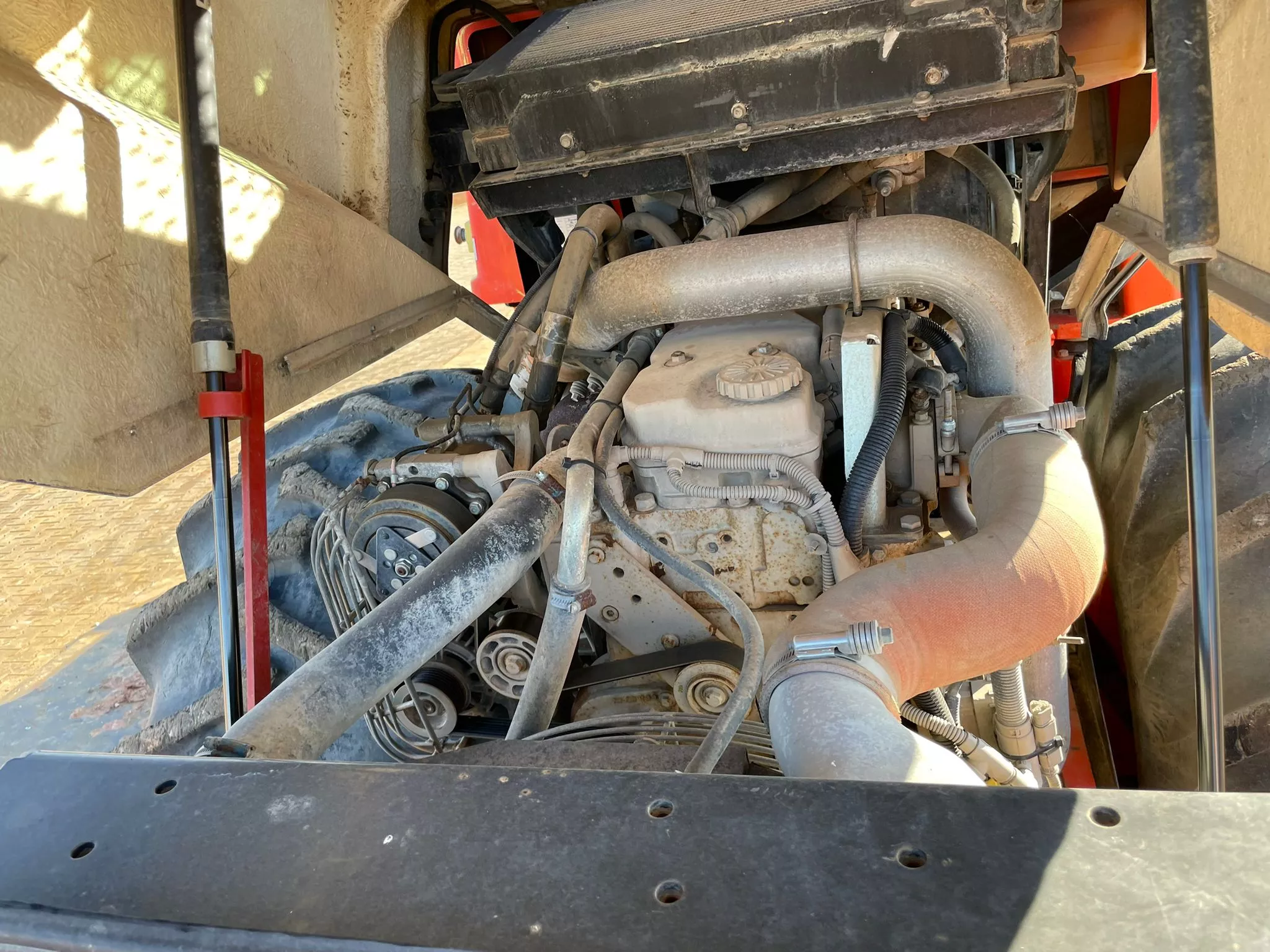

The Dynapac CA612PD is powered by a Cummins QSB6.7 T3 water-cooled engine with after cooler, rated at 142 kW (190 hp) @ 2,200 rpm. Fuel tank capacity is 320 liters. The hydraulic system uses axial piston pumps and motors with variable and constant displacement for driving, steering, and vibration functions. The machine features hydrostatic service brakes, failsafe multidisc parking/emergency brakes, and high/low amplitude vibration control.

Specifications
• Year: 2011
• Country of manufacture: Sweden
• Certification: CE
• Operating mass (axle): 21,000 kg
• Operating mass (incl. ROPS): 20,700 kg
• Front module mass: 14,050 kg
• Rear module mass: 6,650 kg

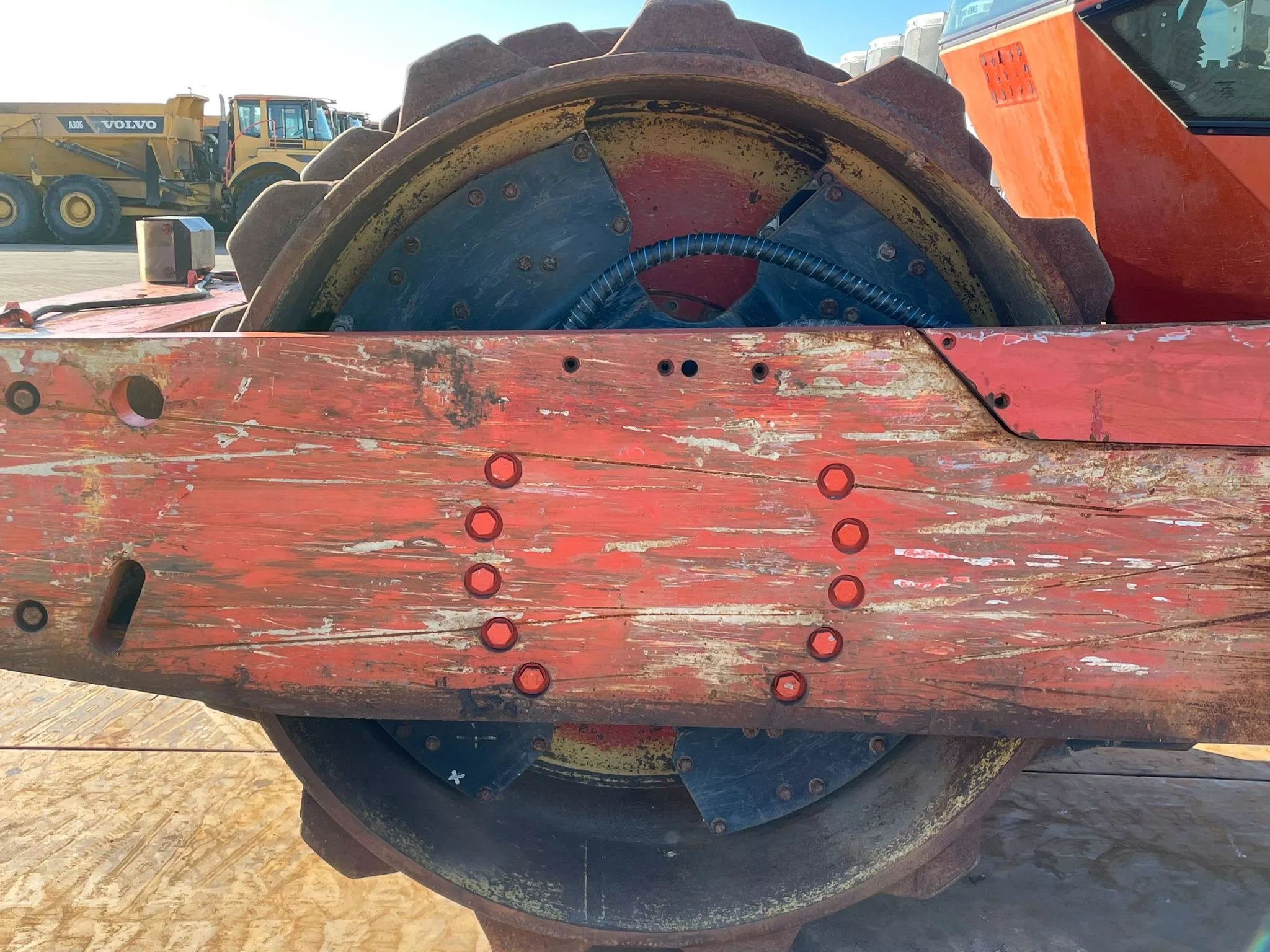

• Traction: 130 pads
• Pad area: 146 cm²
• Speed range: 0–11 km/h
• Theoretical gradeability: 43%

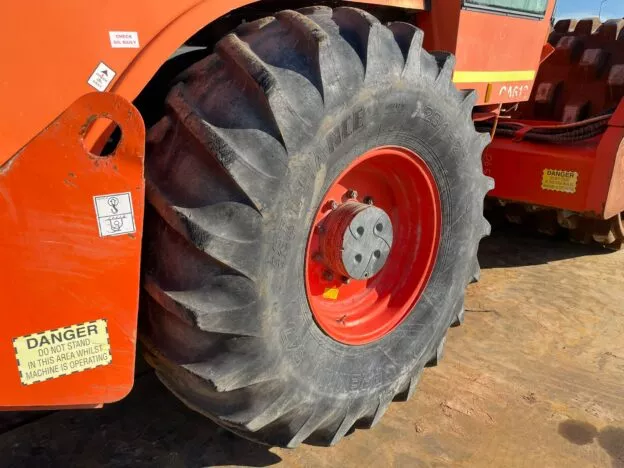

• Tyre size: 23.1×26 (8 ply)
• Vertical oscillation: ±9°
• Vibration frequency high: 29 Hz
• Vibration frequency low: 31 Hz
• Centrifugal force high: 317 kN
• Centrifugal force low: 231 kN
• Nominal amplitude high: 1.80 mm
• Nominal amplitude low: 1.20 mm
• Engine: Cummins QSB6.7 T3, 142 kW / 190 hp @ 2,200 rpm
• Fuel tank: 320 L
• Hydraulic system: Axial piston pumps & motors, variable/constant displacement
• Brakes: Hydrostatic service brake, failsafe multidisc parking/emergency brake
• Condition: Used

Interested in this Dynapac CA612PD pneumatic roller? Contact BIG Machinery for more information, inspection details or a quotation. We deliver worldwide and can arrange complete export documentation and transport from our headquarters in the Netherlands.
