Bell B45E

Articulated Truck

Print images

Bell B45E

127.500
Code machine
00033059
Make
Bell
Model
B45E
Serial number
B93A645EC01205794
Unused
No
Year
2017
Location
BIG 1 BIG Machinery B.V. (Schiemerik 1)
Weight
Axle configuration
6x6
Bucket capacity m3
25.00
Cabin type
Closed
Driven
Wheeled
Engine capacity (kW)
371
Tyre manufacture / size
29.5R25
Fuel type
Diesel

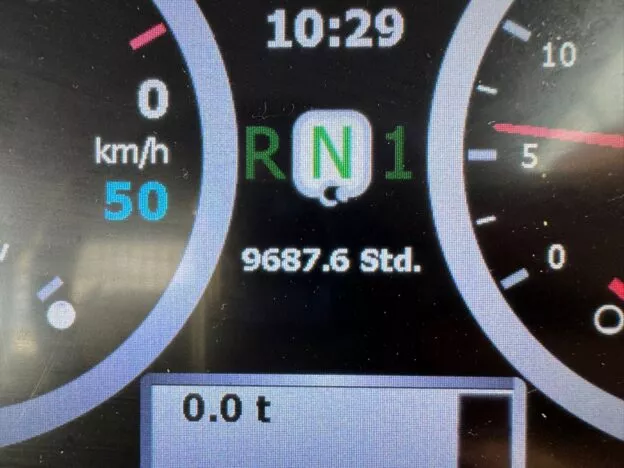

Hour meter shows
9700

Description

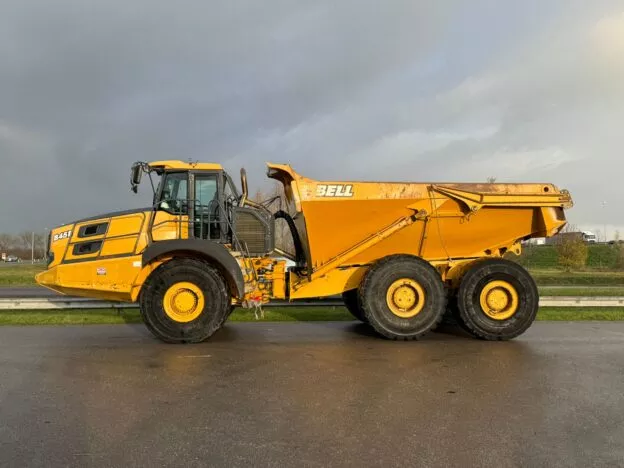

2017 Bell B45E Dump truck for sale.

The Bell B45E is used in Germany by one single owner.

CE certified

Introducing the Bell B45E, the ultimate solution for heavy-duty transport in construction, mining, and infrastructure projects. This articulated dump truck combines unmatched performance with user-friendly features, designed to tackle the most demanding work environments.

Key Features:

Engine and Performance:

Mercedes-Benz OM471LA: 390 kW (523 hp) of raw power at 1700 rpm.
Outstanding torque performance with 2460 Nm at 1300 rpm.
Environmentally friendly, meeting EU Stage IIIA / EPA Tier 3 emission standards.

Advanced Drivetrain:

Allison 4700 ORS Transmission: Fully automatic gearbox with 7 forward and 1 reverse gear.
Hydrodynamic torque converter with lock-up in all gears.

Rugged Build:

Advanced hydraulic system with a maximum pressure of 315 bar.
Powerful dual hydraulic cylinders for quick dump cycles: 11 seconds up, 6 seconds down.
Maximum tipping angle of 70 degrees, programmable for specific tasks.

Capacity and Efficiency:

Payload: Up to 41,000 kg.
Dump body with a capacity of 25 m³ (SAE 2:1), expandable to 26 m³ with an optional tailgate.

Comfort and Safety:

ROPS/FOPS-certified cab with a low noise level of 76 dBA.
Deluxe interior with a 10-inch LCD screen for all vehicle statistics.
Optional Comfort Ride suspension and air conditioning for long workdays.
Why Choose the Bell B45E?

Lower operating costs thanks to efficient fuel consumption and maintenance-friendly components.
Advanced traction control and automatic braking systems for maximum safety and performance.
Ideal for various terrains, from sand to heavy clay.

Are you ready to elevate your productivity to the next level? Contact us for more information or a test drive!
